Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine Sandwich Panelproduction Line

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

Lugar de origen:

Porcelana

Nombre de la marca:

FMS

Certificación:

Número de modelo:

Máquina de moldeado de paneles de sándwich

Contacta con nosotros

Solicitar una cita

Detalles del producto

Diámetro del eje:

70 mm o como su requisito

Material de los ejes:

Acero forjado de grado 45

Hoja de corte:

Acero del molde CR12 con el tratamiento apagado

Velocidad de formación:

5-8 m/min

Material de la hoja de corte:

Cr12MOV, tratamiento térmico

Fuente de alimentación:

380 V, trifásico, 50 Hz

Material del eje:

Acero de alto grado 45#, diámetro 70 mm

Espesor:

0.3-0.8 mm

Pasos de formación:

11 estaciones

Fuerza:

5,5 KW

Ancho del material:

1200 mm

Resaltar:

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

Condiciones de pago y envío

Cantidad de orden mínima

1 juego

Precio

negotiable

Detalles de empaquetado

Desnudo con la película plástica.

Tiempo de entrega

45 días del worl

Condiciones de pago

T/T, LC/C

Capacidad de la fuente

20 juegos por mes

Productos relacionados

El video

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

Obtenga el mejor precio

El video

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

Obtenga el mejor precio

50-300 Thickness Sandwich Panel Roll Forming Machine with Lichao Motor and 32KW Hydraulic Motor Power

Obtenga el mejor precio

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

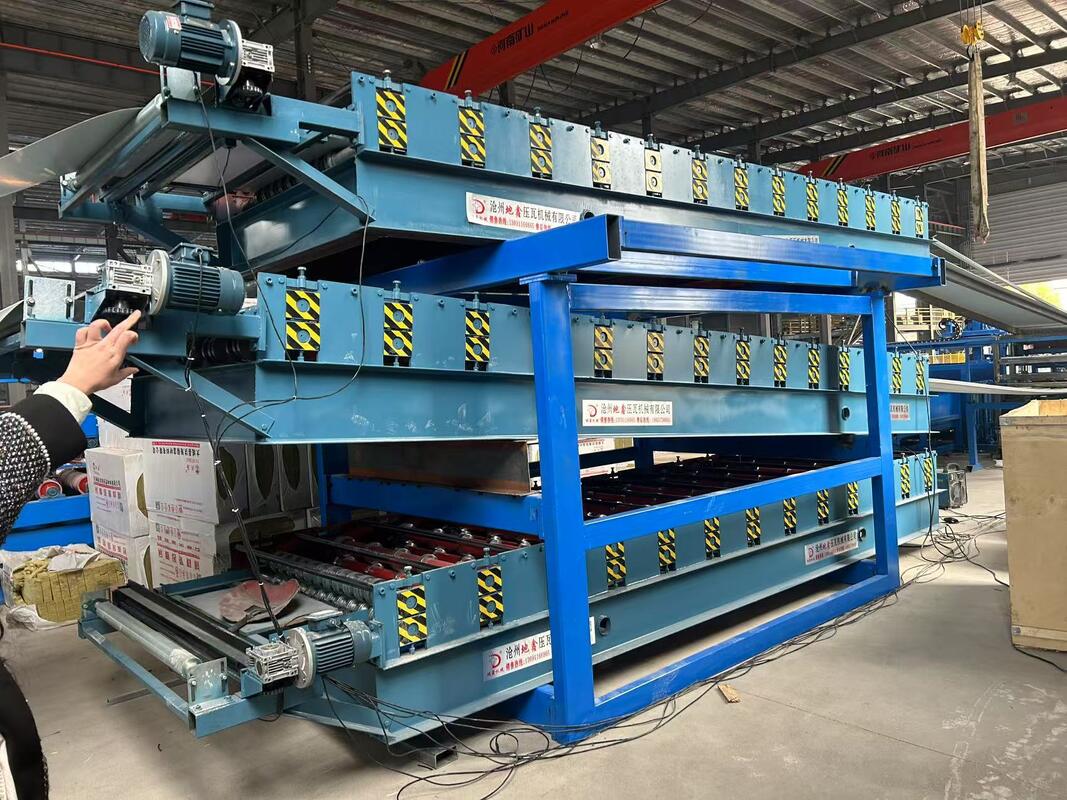

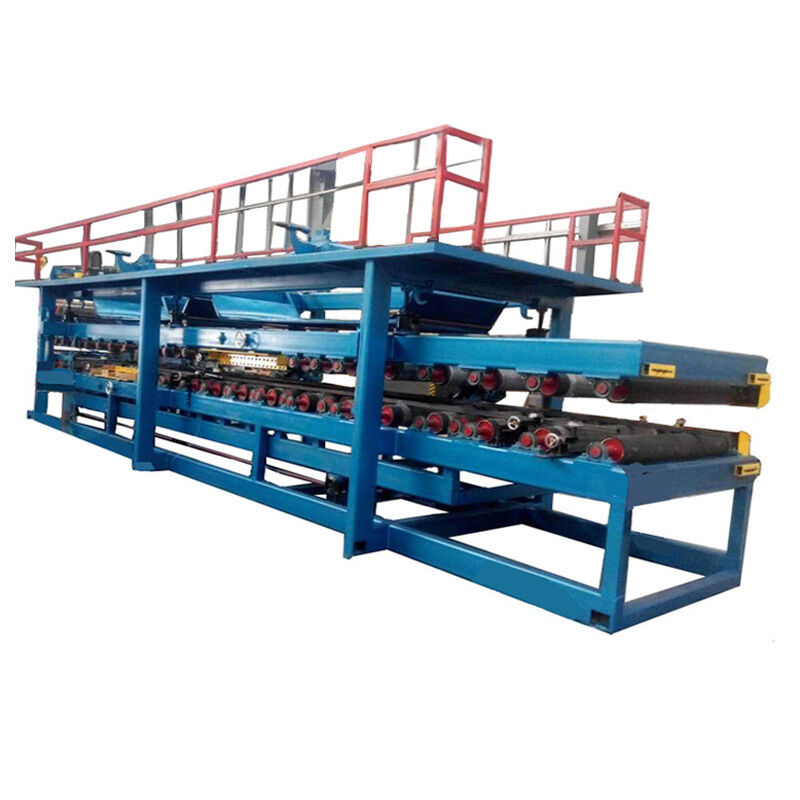

Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine

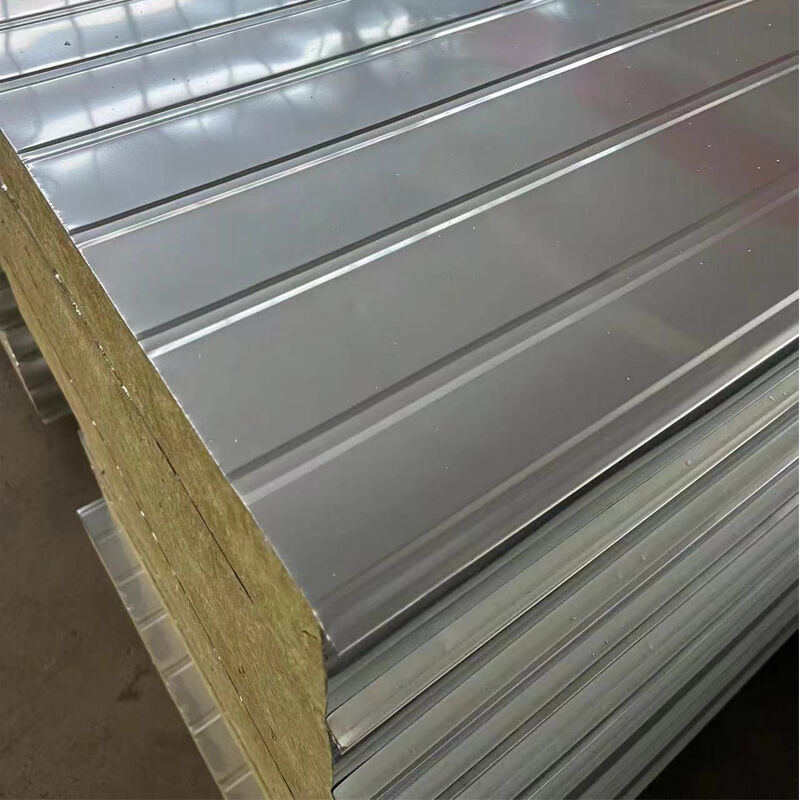

This advanced production line is designed for manufacturing EPS rock wool composite boards, a widely used building insulation material for walls, roofs, and floors. The automated system ensures efficient production of high-quality sandwich panels.

Production Process Overview

EPS Board Processing: Precision cutting and trimming operations
Rock Wool Processing: Accurate cutting and systematic paving
Composite Bonding: Hot or cold pressing to bond materials
Final Molding: Formation of specification-compliant composite boards

Equipment Components

EPS Board Processing Unit: Cutting and trimming systems
Rock Wool Processing Unit: Cutting and paving mechanisms
Composite Unit: Bonding and pressing systems
Molding Unit: Final shaping and sizing equipment
Control System: Automated process control

Technical Specifications

Material of Shaft	70 mm 45# steel forged
Thickness Range	50-250mm
Working Speed	5-6m/min
Dimensions	Approximately 34000mm × 2500mm × 2600mm
Total Power	32 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	11/17 Rows

Warranty & Guarantee

1-Year Manufacturing Defect Guarantee (excluding electrical parts) from date of purchase.

Warranty Exclusions

Damage caused by natural disasters
Malfunctions due to user error
Issues resulting from unauthorized modifications
Problems occurring after relocation or shipment post-installation

Payment & Delivery Terms

Payment Structure: 40% advance payment, 60% balance before shipment
Delivery: FOB Tianjin Xingang Port
Lead Time: 65 days after receipt of down payment

Frequently Asked Questions

Does one machine produce only one style of panel profile?

No. For wider and double-layer making machines, it can produce more than 6 different types of panels.

What support is provided if the machine breaks down?

12-month warranty period. If parts cannot be repaired, we provide replacements (customer covers express costs). After warranty, we offer technical support and negotiated solutions for the equipment's lifetime.

Can you handle transportation?

Yes, we have extensive transportation experience. Please provide your destination port or address.

Are you a manufacturer or trading company?

We operate as both manufacturer and trading company.

Do you provide customization?

Yes, we design machines according to your requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.

How can I verify machine testing before shipping?

We provide testing videos for reference, or welcome you to visit our factory and test the machine personally.
