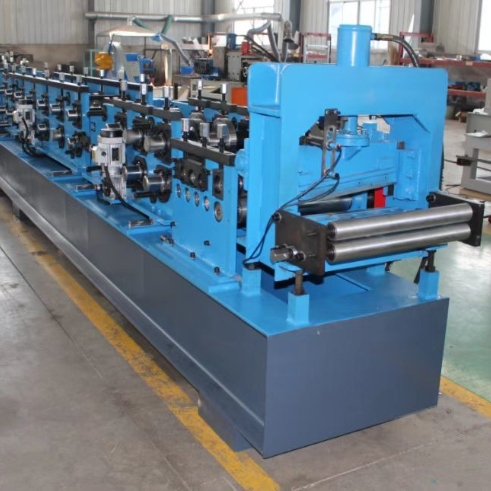

CZ Purlin Roll Forming Machine with 16 Roller Stations Automatic Fixed-Length Cutting and Hydraulic Station for High Efficiency

16 Roller Stations CZ Purlin Roll Forming Machine

Automatic Fixed-Length Cutting Omega Hat-Shaped Purlin Machine

Hydraulic Station C Panel Forming Machine

Lugar de origen:

China continental

Nombre de la marca:

FMS

Certificación:

ISO CE

Contacta con nosotros

Solicitar una cita

Detalles del producto

Nombre del producto:

Máquina formadora de rollos de carril Din Máquina para fabricar pernos de perfil Omega

Materia prima:

PPGI, galvanizado

Velocidad:

8-15m/minuto

Espesor del material:

1 mm - 3 mm

Peso:

9 toneladas

Garantía:

1 año

Fuerza:

15kw

Sistema de control:

SOCIEDAD ANÓNIMA

Resaltar:

16 Roller Stations CZ Purlin Roll Forming Machine

Automatic Fixed-Length Cutting Omega Hat-Shaped Purlin Machine

Hydraulic Station C Panel Forming Machine

Condiciones de pago y envío

Cantidad de orden mínima

1 set

Precio

negotiable

Detalles de empaquetado

40 'FLC

Tiempo de entrega

30 días hábiles

Condiciones de pago

L/C, T/T, D/A, D/P

Capacidad de la fuente

20 conjuntos por mes

Productos relacionados

El video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Obtenga el mejor precio

El video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Obtenga el mejor precio

El video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Obtenga el mejor precio

El video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Obtenga el mejor precio

Contacta con nosotros

86-317-2016816

Contacta ahora

Descripción del producto

Steel C/Z Purlins Machine - C/Z Purlin Forming Machine - C Panel Forming Machine

The Omega hat-shaped steel purlin forming machine is a complete system consisting of passive unwinding rack, unwinding rack base, feed introduction platform, leveling device, forming host, punching device, forming and cutting device, hydraulic station, and computer control cabinet.

The machine produces hat-shaped purlins with excellent bending and compression resistance, superior flatness, and features automatic fixed-length cutting and punching. Its high automation level ensures quick and convenient installation.

Technical Specifications

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm - 3 mm
3	Working Speed	8-15m/min (excluding cutting time)
4	Roller Station	16 Rows
5	Dimension	650013001200 mm
6	Machine Weight	8000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	380V, 60HZ, 3 PHASES (customizable)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45# steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Applications

The hat-shaped steel purlin forming machine serves as the primary stress structure for large and medium-sized industrial and civil buildings. It's used for:

Creating non-load-bearing walls and roof decorations with plasterboard, gypsum board, and other lightweight materials
Constructing various decorative building roof shapes
Forming interior and exterior building walls and ceiling scaffolding base materials

The products are ideal for hotels, theaters, shopping malls, factories, office buildings, renovation projects, interior decoration settings, and various roof applications.

Key Advantages

Automatic control software for production information management
Simple operation and easy maintenance
Quick mechanical debugging and mold replacement
Highly integrated network automation system for superior performance
