High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

High Efficiency CZ Purlin Roll Forming Machine

45# Steel Rollers Purlin Roll Former

High Straightness C and Z Purlin Roll Forming Machine

Contacta con nosotros
Solicitar una cita
High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction
High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction
Detalles del producto
Voltaje:
380V/50Hz/3fase
Sistema de control:
SOCIEDAD ANÓNIMA
Transmisión:
Impulso de la cadena
Material de corte:
CR12MOV
Peso:
3.5t
Tamaño:
7000*1400*1500mm
Rodillos:
18 Estaciones
Longitud de corte:
Cualquier longitud
Resaltar:

High Efficiency CZ Purlin Roll Forming Machine

,

45# Steel Rollers Purlin Roll Former

,

High Straightness C and Z Purlin Roll Forming Machine

Condiciones de pago y envío
Cantidad de orden mínima
1 conjuntos
Tiempo de entrega
30 días de trabajo
Condiciones de pago
L/C, T/T
Productos relacionados
Un buen precio. High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction en línea El video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Obtenga el mejor precio
Un buen precio. Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings en línea El video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Obtenga el mejor precio
Un buen precio. CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency en línea El video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Obtenga el mejor precio
Un buen precio. CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel en línea El video

CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Obtenga el mejor precio
Contacta con nosotros
86-317-2016816
Contacta ahora
Descripción del producto

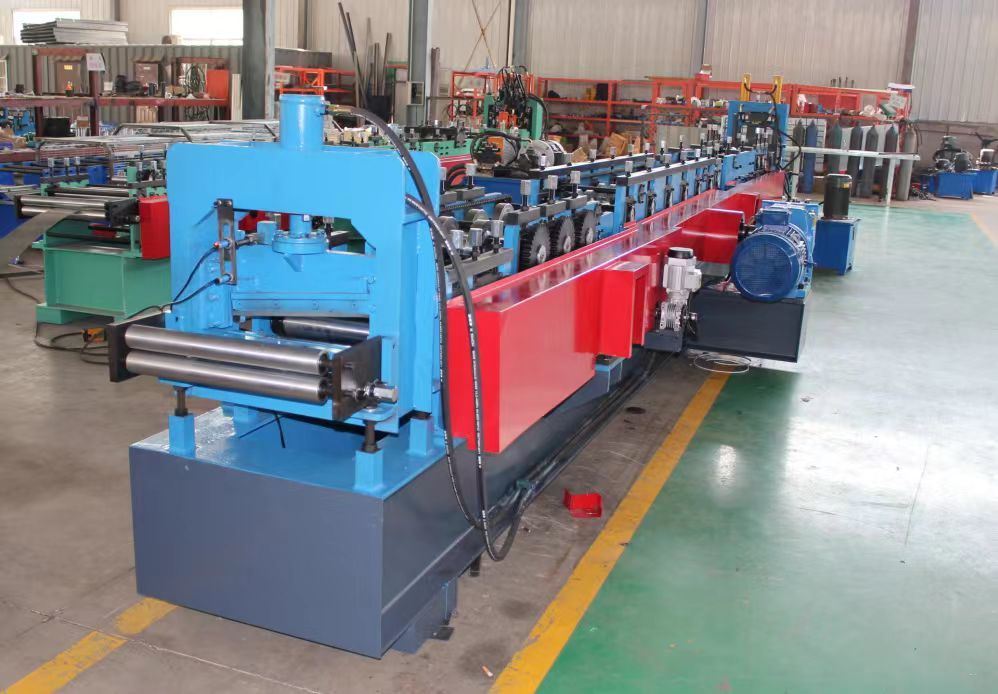

Metal Structure C/Z/U Shape Purlin Roll Forming Machine
Product Overview
The CZ Purlin Roll Forming Machine is an advanced building material production system designed for large-scale manufacturing of C and Z purlins. With dimensions of 7000×1400×1500mm and weighing 3.5T, this machine delivers fast forming speeds of 8-12m/min with customizable cutting lengths to meet diverse customer requirements.
Key Features
  • Produces purlins with excellent straightness and uniformity
  • High-quality alloy steel rollers and shafts, quenched and tempered
  • Stable performance with easy operation and high efficiency
  • PLC control system for precise operation
  • Hydraulic cutting system for customizable lengths
Technical Specifications
Parameter Specification
Material Compatibility Galvanized Steel
Thickness Range 1.5-3.0mm
Roller Material 45# Steel
Machine Dimensions 7000×1400×1500mm
Cutting System Hydraulic
Control System PLC
Transmission Chain Drive
Roller Stations 18 Stations
Applications
This machine is ideal for steel frame construction and purlin manufacturing, capable of processing materials with high precision and speed. Its adjustable rollers allow for creating various shapes and sizes, making it a versatile solution for structural steel component production.
Support & Services
  • Professional installation and commissioning
  • Comprehensive troubleshooting support
  • Operator training and safety guidance
  • Maintenance and repair services
  • Machine upgrades and customization
Packaging & Shipping
Machines are securely packaged in wooden crates and shipped via air, land, or sea. Each unit includes an instruction manual and tool set.
Frequently Asked Questions
What is a CZ Purlin Roll Forming Machine?
Industrial equipment for automatically forming and cutting structural steel components including C, Z, and U-shaped purlins.
What materials can it process?
Galvanized steel, cold-rolled steel, stainless steel, and aluminum.
What is the production speed?
Up to 40m/min.
What are the main advantages?
High efficiency, low noise, precision operation, and large production capacity.
What power requirements does it have?
380V/50Hz, 3-phase power with total power consumption of 3.2kW.
