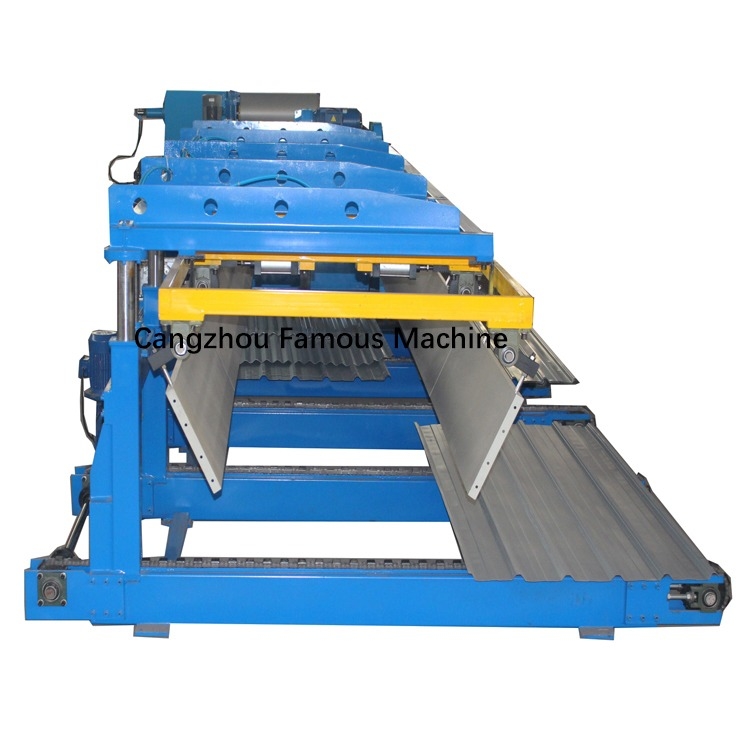

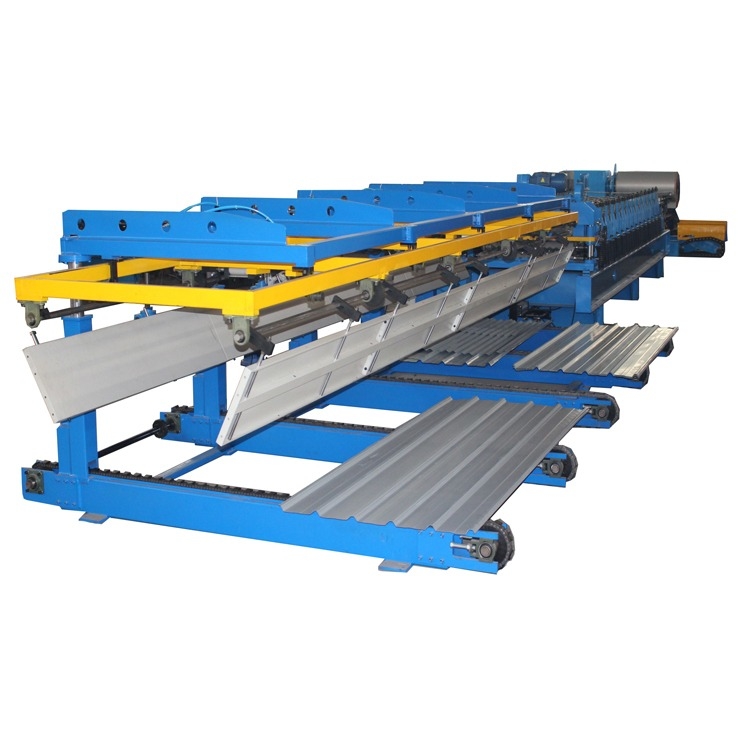

6m Automatic Stacker for Roof Sheet Roll Forming Machine

6m Automatic Stacker for Roof Sheet Roll Forming Machine

6m automatic roof sheet stacker

roof tile roll forming machine stacker

automatic stacker for roll forming

Lugar de origen:

PORCELANA

Nombre de la marca:

FMS

Certificación:

CE

Número de modelo:

Máquina de moldeado de paneles de sándwich

Contacta con nosotros
Solicitar una cita
Detalles del producto
Diámetro de eje:
70 mm o como su requisito
Material de los ejes:
Acero forjado de grado 45
Peso del apilador:
1
Longitud del apilador:
6m/8m/12m
Fuente de alimentación:
380V, 3 FASE, 50HZ
Tamaño del apilador:
Alrededor de 6300 × 1500 × 1200 mm L x W x H
Espesor:
0.3-0.8 mm
Fuerza:
2.2kw
Ancho de materias primas:
1000 mm
Resaltar:

6m automatic roof sheet stacker

,

roof tile roll forming machine stacker

,

automatic stacker for roll forming

Condiciones de pago y envío
Cantidad de orden mínima
1 conjunto
Precio
negotiable
Detalles de empaquetado
Desnudo con la película plástica.
Tiempo de entrega
45 días del worl
Condiciones de pago
T/T, L/C
Capacidad de la fuente
20 juegos por mes
Descripción del producto

6m Automatic Stacker for Roof Sheet Roll Forming Machine

With a stacker, sheets are protected from scratches all the while keeping your rollformer in production. The sheets stay protected by sliding along the rollers and guides rather than each other. The pneumatic powered stacker arms are triggered by a photo eye which releases the panels and drops them onto the stacked sheets. The design of both stackers allows for minimal drop distance of the panel which is critical key to a successful stacker. The drop distance is normally four inches. The less distance the sheet has to drop, the more uniform the stacked sheets will be.


1. Processing flow diagram of Whole Production Line:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table(Automatic Stacker)



Specification

Warranty of core components 1 Year
Voltage 380V 50Hz
Weight 3500kg
Production Capacity 8-15m/min
Power 5.5Kw
Dimension(L*W*H) about 6200*1200*1000mm
Applicable Material GI,PPGI (According to customer requirements)
Production Capacity 8-15M/Min
Voltage 380V.50HZ.3Phase
Roll material 45# high grade steel
Frame thickness 16mm
Core Components Motor, PLC
Roll stations 12
Rolling thinckness 0.3-0.7mm


6m Automatic Stacker for Roof Sheet Roll Forming Machine 0


Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation


Payment terms
40% in advance as down payment
60% is paid before the shipment is processed



Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 35 days after the down payment is received.


RFQ

1. Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. What can you do if the machine broken?
Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts replace the broken parts ,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

3. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.

4. Are you manufacturer or trading company?
We are manufacturer and trading company .

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. How can I trust you that machines pasted testing running before shipping?
1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
